Uplift, Elevate & Recline Systems:

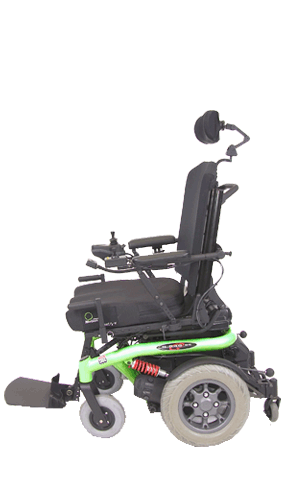

We are pleased to provide simplified, straightforward solutions designed meet specific client needs such as Elevate, Recline and stand-assist (Uplift). Many of these systems evolved through our custom RFQ program, and due to popular demand, have now become standard offerings. These systems have limited modularity and are created with a focus on one function, however, in certain configurations it is possible to add other functions.

	Features: Recline Only - up to 174° Elevate Only - up to 8" 85° Uplift Uplift - optional 32°, 37° or 45° of Anterior Lift with synchronized Recline and Foot Platform or Power Recline and Power Center Mount Foot Platform Lifetime structural warranty

Standard Features

	All systems come with seat assembly, seat pan, rigid back pan, height adjustable arm rests and standard arm pads (Front rigging included with Uplift system)
	Weight capacities up to 300 lbs, (280 lbs with Elevate) dependingon system configuration and base
	Seat Sizes 16" - 22" (width) and 16" - 22" (depth)
	Lifetime structural warranty

Positioning Options

	Elevate Only system (up to 8" elevation for up to 225 lbs, or 7" for 280 lb weight capacity)
	Recline Only system - up to 174°

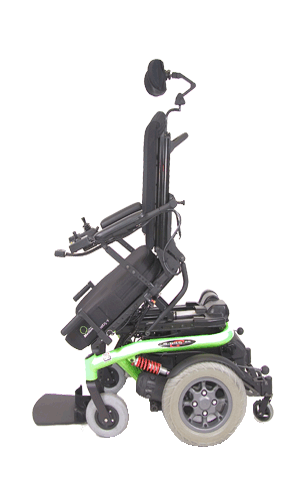

	Uplift system - 32°, 37° or 45° of anterior lift
	Precline available up to 30°

Seating Option

	Single Post Back (Elevate only systems)
	MaTRx-V cushions
	MaTRx PB Backs
	Contour Backs
	Onyx Package
	Headrests

Optional Accesssories

	Fixed and Swing Away Laterals
	Contour Arm Troughs and Hand Pads
	Armrest Storage Compartment (Glove Box)
	Arm Pad Storage - Cup Holder

Front Rigging Options

All power front rigging may increase STF by approximately 1" Options available on Uplift System via RFQ only
	Center Mount Power Elevating & Articulating Foot Platform
	Pivot Plus Power Foot platform
	Pivot Plus Elevating Legrests - Power & Manual
	Fixed Center Mount Foot Platform
	Heavy Duty 70° Lift & Swing Away Footrests
	Split Power Elevating Articulating Foot Platform

Electronics

All electronics allow users to control their system through either a separate switch, toggle and/or their wheelchair drive controls
	Standard single function electronics included
	Enhanced electronics available
	Electronics options (ie. Lazarus Jump Starter, M16 Splitter, M06 Attendant Power Switch, Stealth Egg Switch)
	Drive while elevated at .25 speed

Other Options

	O2 Holders - Articulating and Non-Articulating
	Vent Trays not available on Elevate Only or Uplift systems, or with Invacare’s M71 base

Available On:

	3G Storm , TDX (all), M91, M71*

	S525, S646, S626, P222/220

	1121, 1122, 1400, 1402, 1420, 1103, 1107, Q600, Q610, Q6000, 1113 ATS, Dynamo ATS*
*Recline Only ** Recline Only/Elevate Only
